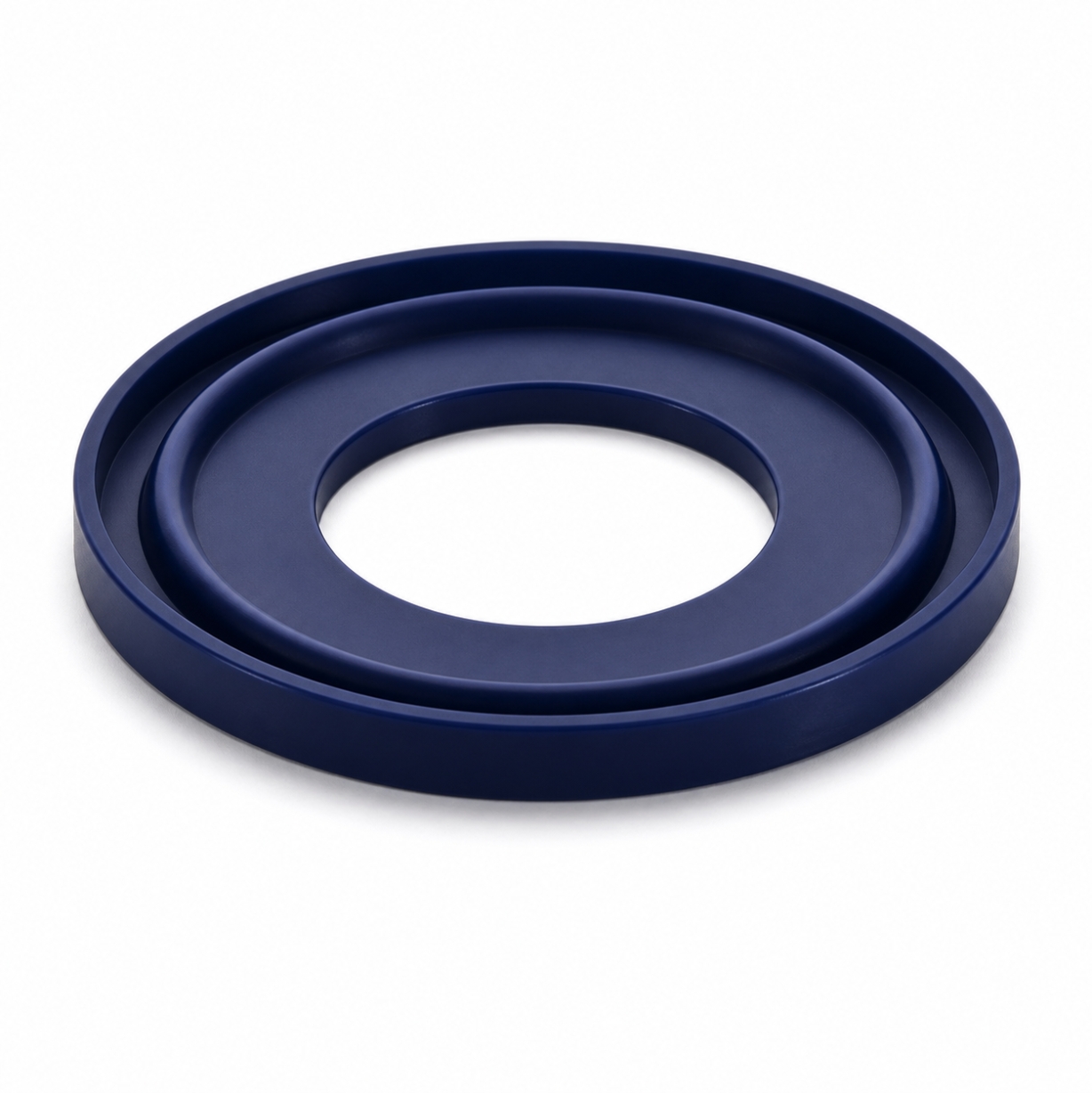

ISO 1127 Silicone Gasket
Manufacturer & Custom Solutions
Stainless Steel Tubes — Dimensions, Tolerances and Conventional Masses per Unit Length
ISO 1127 is a dimension standard for stainless steel tubes. If your sanitary piping is built to ISO 1127 tube sizes, ZSR has the right gaskets for it. Gaskets for these tube connections are usually made from EPDM or PTFE. Silicone is a better choice for food and pharmaceutical lines because it is FDA grade, soft for easy installation, and resistant to steam and cleaning chemicals. We produce silicone gaskets for clamp and union connections that match ISO 1127 tube outside diameters. Tell us your tube OD or send your line list, and we will match the correct gasket size for you.
FDA 21 CFR 177.2600
Rubber Articles Intended for Repeated Use
LFGB 30&31
EU Food Contact Materials
USP Class VI / ISO 10993
Biocompatibility of Medical Devices
RoHS / REACH
Environmental Compliance
UL 94
Flammability of Plastic Materials
Built to Your Exact Spec
Custom Silicone Gaskets Options
| Image | Product | Type | Short Info | Action |
|---|---|---|---|---|
 | DIN 32676 Silicone Gasket | Standard & Size | DIN 32676 tri-clamp silicone gaskets, FDA food grade, full size range in stock at ZSR factory. | View Details |
 | AS568 Standard Silicone Gaskets | Standard & Size | AS568 standard-size silicone gaskets for groove-based sealing applications. | View Details |
 | DIN 3869 Silicone Sealing Ring | Standard & Size | DIN 3869 profile sealing rings in silicone for hydraulic ports, working from -60°C to +200°C. | View Details |
 | EN 1514-1 Silicone Gasket | Standard & Size | EN 1514-1 silicone flat gaskets for PN flanges, IBC and FF types, standard and custom sizes. | View Details |
 | Custom Die Cut Silicone Gaskets | Standard & Size | Flat silicone gaskets cut to any shape from sheet stock. Precision cutting for exact fits. | View Details |
 | ISO 7483 Silicone Gasket | Standard & Size | Silicone gaskets to ISO 7483 for ISO 7005 flanges, made for international projects and tenders. | View Details |
 | Custom Molded Silicone Gaskets | Standard & Size | Three-dimensional silicone gaskets made by compression or injection molding. For complex sealing shapes. | View Details |
 | ISO 1127 Silicone Gasket | Standard & Size | Sanitary silicone gaskets matched to ISO 1127 stainless steel tube sizes for food and pharma lines. | View Details |
 | Standard Flange Silicone Gaskets | Standard & Size | Silicone gaskets cut to fit pipe flanges. Matches ANSI, DIN and JIS bolt patterns. | View Details |
 | B16.21 Silicone Gasket | Standard & Size | ZSR makes silicone gaskets to ASME B16.21, ring type and full face type, for Class 150 to 2500 pipe flanges. | View Details |
 | ISO 2852 Silicone Gasket | Standard & Size | ISO 2852 silicone clamp gaskets for food industry couplings, FDA grade, factory direct from ZSR. | View Details |
 | Tri-Clamp / Sanitary Silicone Gaskets | Standard & Size | Hygienic silicone gaskets for food and pharmaceutical pipe connections. CIP and SIP compatible. | View Details |
 | B16.5 Silicone Gasket | Standard & Size | Silicone gaskets from ZSR sized to fit ASME B16.5 flanges, NPS 1/2 to 24 inch, Class 150 to 2500. | View Details |
 | Metric Size Silicone Gaskets | Standard & Size | Metric dimension silicone gaskets for international equipment standards. | View Details |
 | DIN 7603 Silicone Sealing Ring | Standard & Size | Flat silicone sealing rings made to DIN 7603 for screw plugs, banjo bolts and threaded fittings. | View Details |
 | DIN 2690 Silicone Gasket | Standard & Size | Silicone flat gaskets to DIN 2690 / EN 1514-1 dimensions for PN6 to PN40 flanges, food grade available. | View Details |
 | DIN 2691 Silicone Gasket | Standard & Size | Silicone gaskets made to DIN 2691 for tongue and groove flanges PN10 to PN160, ideal for plant repair. | View Details |
 | DIN 11851 Silicone Gasket | Standard & Size | Food grade silicone gaskets for DIN 11851 sanitary unions, DN10 to DN150, FDA material. | View Details |
 | FDA Food Grade Silicone Gasket | Grade | Food-safe silicone gaskets for processing equipment. FDA-compliant and taste-neutral. | View Details |
 | Medical Grade Silicone Gasket | Grade | Biocompatible silicone gaskets for medical devices. Sterilizable with full documentation. | View Details |
 | Industrial Grade Silicone Gasket | Grade | General-purpose silicone gaskets for industrial sealing. Reliable, durable and cost-effective. | View Details |
 | High Temperature / Heat Resistant Silicone Gaskets | Special Function | Heat-resistant silicone gaskets rated for continuous use above 200°C. For ovens and furnaces. | View Details |
 | Flame Retardant Silicone Gaskets | Special Function | Self-extinguishing silicone gaskets meeting UL 94 V-0. For fire-safety applications. | View Details |
 | Solid Silicone Rubber Gaskets | Materials | Solid silicone rubber gaskets with excellent compression set resistance and long service life. | View Details |
 | Fluorosilicone (FVMQ) Gaskets | Materials | Fuel and solvent-resistant silicone gaskets for chemical processing and automotive applications. | View Details |
 | Transparent / Clear Silicone Gaskets | Color | Clear silicone gaskets for visible sealing and light-transmitting applications. | View Details |
 | Black / White Silicone Gaskets | Color | Standard black and white silicone gaskets. Fastest delivery from stock. | View Details |
How ISO 1127 Relates to Gaskets
Let us be precise about what this standard is: ISO 1127 defines stainless steel tubes — their outside diameters, wall thicknesses, tolerances, and weights per meter. It does not define gaskets. So why do gasket buyers search for it?
Because every gasket in a tube system is sized from the tube. When your sanitary piping is built to ISO 1127, the tube outside diameter becomes the starting point for the gasket design:
At ZSR Silicone Parts, we keep the full ISO 1127 tube dimension table in our engineering files. Give us your tube OD — or your line list — and we calculate the correct gasket dimensions for the connection you are using. No guessing, no trial and error.
Tube OD to Gasket Size Matching
The table below matches the common ISO 1127 tube outside diameters to the gasket sizes we recommend for clamp and union connections:
ISO 1127 Tube OD (mm) | Approx. DN | Recommended Gasket ID (mm) | Typical Connection |
|---|---|---|---|
10.2 | DN6 | 10.4 | Small clamp unions |
13.5 | DN8 | 13.7 | Clamp / screw unions |
17.2 | DN10 | 17.4 | Clamp / screw unions |
21.3 | DN15 | 21.5 | Clamp / screw unions |
26.9 | DN20 | 27.1 | Clamp / screw unions |
33.7 | DN25 | 33.9 | Clamp / screw unions |
42.4 | DN32 | 42.6 | Clamp / screw unions |
48.3 | DN40 | 48.5 | Clamp / screw unions |
60.3 | DN50 | 60.5 | Clamp / screw unions |
76.1 | DN65 | 76.3 | Clamp unions |
88.9 | DN80 | 89.1 | Clamp unions |
114.3 | DN100 | 114.5 | Clamp unions |
The gasket ID carries a small clearance over the tube OD — enough to install easily, small enough to stay flush with the bore. The gasket OD is set by your fitting, not by the tube standard: for clamp connections on ISO 1127 tubes, this is typically DIN 32676 Series B, and we cut the gasket OD to that ferrule size.
What about wall thickness?
ISO 1127 assigns wall thickness series to each tube OD. The wall thickness changes the tube's inner bore — but usually not the gasket, because the gasket seals on the tube OD or on the fitting face. You only need to tell us the wall series if your gasket seals inside the bore — a rare, special design we can also make.
Applications in Food and Pharmaceutical Tubing
ISO 1127 stainless tubes are the backbone of sanitary piping — food plants, dairies, breweries, pharmaceutical and biotech lines across Europe and beyond. In these systems, gasket precision is not a luxury:
For these duties we recommend our platinum-cured food grade silicone (FDA 21 CFR 177.2600 compliant) as standard, and USP Class VI medical grade for pharmaceutical and high-purity lines. Both resist daily CIP chemicals and SIP steam cycles without hardening — and both ship with the compliance documents your QA team needs.
Any tube size, any connection: ZSR produces gaskets matched to every ISO 1127 tube OD — standard clamp and union styles, non-standard sizes, and fully custom designs from your drawing or a sample gasket. Tell us your tube list, and we will match every gasket on it.
What Is ISO 1127?
ISO 1127 is the international dimension standard for stainless steel tubes. Its full title — Stainless Steel Tubes: Dimensions, Tolerances and Conventional Masses per Unit Length — describes exactly what it does: for every tube size, it fixes the outside diameter, the available wall thicknesses, the manufacturing tolerances, and the theoretical weight. Published by the International Organization for Standardization, with tube sizes selected from the global ISO 4200 system, it is the standard behind most metric stainless steel tubing in industrial and sanitary service worldwide.
Key Points of the Standard
At ZSR Silicone Parts, we match silicone gaskets to ISO 1127 tube dimensions every day — food grade, medical grade, and custom designs included. Send us your tube OD list, and we will send back matched gasket sizes and a quote within 24 hours.
