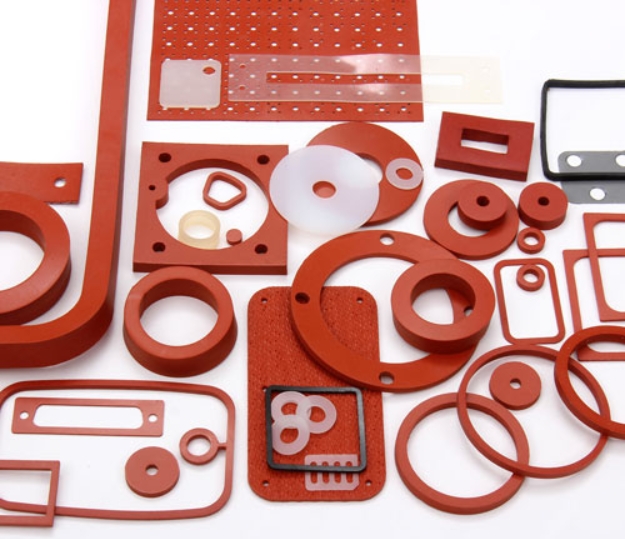

Custom Die Cut Silicone Gaskets
ZSR Silicone die-cuts silicone gaskets from sheet stock up to 36 inches wide. Whether you need a simple circle or a complex multi-hole pattern, our CNC cutters and steel-rule dies deliver clean edges. Adhesive backing is available for easy assembly.
FDA 21 CFR 177.2600
Rubber Articles Intended for Repeated Use
LFGB 30&31
EU Food Contact Materials
USP Class VI / ISO 10993
Biocompatibility of Medical Devices
RoHS / REACH
Environmental Compliance
UL 94
Flammability of Plastic Materials
Built to Your Exact Spec
Custom Silicone Gaskets Options
| Image | Product | Type | Short Info | Action |
|---|---|---|---|---|
 | DIN 32676 Silicone Gasket | Standard & Size | DIN 32676 tri-clamp silicone gaskets, FDA food grade, full size range in stock at ZSR factory. | View Details |
 | AS568 Standard Silicone Gaskets | Standard & Size | AS568 standard-size silicone gaskets for groove-based sealing applications. | View Details |
 | DIN 3869 Silicone Sealing Ring | Standard & Size | DIN 3869 profile sealing rings in silicone for hydraulic ports, working from -60°C to +200°C. | View Details |
 | EN 1514-1 Silicone Gasket | Standard & Size | EN 1514-1 silicone flat gaskets for PN flanges, IBC and FF types, standard and custom sizes. | View Details |
 | Custom Die Cut Silicone Gaskets | Standard & Size | Flat silicone gaskets cut to any shape from sheet stock. Precision cutting for exact fits. | View Details |
 | ISO 7483 Silicone Gasket | Standard & Size | Silicone gaskets to ISO 7483 for ISO 7005 flanges, made for international projects and tenders. | View Details |
 | Custom Molded Silicone Gaskets | Standard & Size | Three-dimensional silicone gaskets made by compression or injection molding. For complex sealing shapes. | View Details |
 | ISO 1127 Silicone Gasket | Standard & Size | Sanitary silicone gaskets matched to ISO 1127 stainless steel tube sizes for food and pharma lines. | View Details |
 | Standard Flange Silicone Gaskets | Standard & Size | Silicone gaskets cut to fit pipe flanges. Matches ANSI, DIN and JIS bolt patterns. | View Details |
 | B16.21 Silicone Gasket | Standard & Size | ZSR makes silicone gaskets to ASME B16.21, ring type and full face type, for Class 150 to 2500 pipe flanges. | View Details |
 | ISO 2852 Silicone Gasket | Standard & Size | ISO 2852 silicone clamp gaskets for food industry couplings, FDA grade, factory direct from ZSR. | View Details |
 | Tri-Clamp / Sanitary Silicone Gaskets | Standard & Size | Hygienic silicone gaskets for food and pharmaceutical pipe connections. CIP and SIP compatible. | View Details |
 | B16.5 Silicone Gasket | Standard & Size | Silicone gaskets from ZSR sized to fit ASME B16.5 flanges, NPS 1/2 to 24 inch, Class 150 to 2500. | View Details |
 | Metric Size Silicone Gaskets | Standard & Size | Metric dimension silicone gaskets for international equipment standards. | View Details |
 | DIN 7603 Silicone Sealing Ring | Standard & Size | Flat silicone sealing rings made to DIN 7603 for screw plugs, banjo bolts and threaded fittings. | View Details |
 | DIN 2690 Silicone Gasket | Standard & Size | Silicone flat gaskets to DIN 2690 / EN 1514-1 dimensions for PN6 to PN40 flanges, food grade available. | View Details |
 | DIN 2691 Silicone Gasket | Standard & Size | Silicone gaskets made to DIN 2691 for tongue and groove flanges PN10 to PN160, ideal for plant repair. | View Details |
 | DIN 11851 Silicone Gasket | Standard & Size | Food grade silicone gaskets for DIN 11851 sanitary unions, DN10 to DN150, FDA material. | View Details |
 | FDA Food Grade Silicone Gasket | Grade | Food-safe silicone gaskets for processing equipment. FDA-compliant and taste-neutral. | View Details |
 | Medical Grade Silicone Gasket | Grade | Biocompatible silicone gaskets for medical devices. Sterilizable with full documentation. | View Details |
 | Industrial Grade Silicone Gasket | Grade | General-purpose silicone gaskets for industrial sealing. Reliable, durable and cost-effective. | View Details |
 | High Temperature / Heat Resistant Silicone Gaskets | Special Function | Heat-resistant silicone gaskets rated for continuous use above 200°C. For ovens and furnaces. | View Details |
 | Flame Retardant Silicone Gaskets | Special Function | Self-extinguishing silicone gaskets meeting UL 94 V-0. For fire-safety applications. | View Details |
 | Solid Silicone Rubber Gaskets | Materials | Solid silicone rubber gaskets with excellent compression set resistance and long service life. | View Details |
 | Fluorosilicone (FVMQ) Gaskets | Materials | Fuel and solvent-resistant silicone gaskets for chemical processing and automotive applications. | View Details |
 | Transparent / Clear Silicone Gaskets | Color | Clear silicone gaskets for visible sealing and light-transmitting applications. | View Details |
 | Black / White Silicone Gaskets | Color | Standard black and white silicone gaskets. Fastest delivery from stock. | View Details |
Die Cutting vs. Molding: Which Fits Your Project?
Both processes make custom silicone gaskets, but they fit different needs. Die cutting cuts gaskets from silicone sheets. Molding shapes gaskets inside a metal mold. Here is a simple comparison to help you choose:
Factor | Die Cutting | Molding |
|---|---|---|
Tooling Cost | Low (simple cutting die, or no die with CNC cutting) | High (custom mold needed) |
Lead Time | Fast — samples in days | Longer — mold making takes weeks |
MOQ | Low, prototypes welcome | Higher, to cover mold cost |
Best Shape | Flat, 2D shapes | 3D shapes with lips, ribs, or curves |
Thickness | 0.5 mm – 25 mm (sheet based) | Almost any thickness |
Tolerance | ±0.1 mm to ±0.13 mm | Tighter, set by the mold |
Unit Cost at Low Volume | Lower | Higher |
Unit Cost at High Volume | Higher | Lower |
Our advice
If you need a flat gasket, a fast sample, or a small to medium order, die cutting is your best choice. If you need a 3D shape or a very large order, molding will save you money in the long run. Not sure which one fits? Send us your drawing — our engineers will check it and suggest the best process for free.
Custom Shapes We Can Cut
Our factory can die cut silicone gaskets in almost any flat shape, including:
How to send us your design: A DXF, DWG, PDF, or STEP file is perfect. No drawing? No problem — send us a sample, a photo with sizes, or even a hand sketch. We will make the production drawing for you and confirm it before cutting.
Material & Thickness Options
We keep a wide range of silicone materials in stock, so we can start cutting fast:
Material Type | Thickness Range | Hardness | Best For |
|---|---|---|---|
Solid Silicone Rubber | 0.5 – 20 mm | 30 – 80 Shore A | General sealing, high pressure joints |
Silicone Sponge | 1 – 25 mm | Soft to firm | Low-pressure seals, dust and water protection |
Silicone Foam | 1 – 25 mm | Very soft | Gap filling, soft cushion seals |
Fluorosilicone (FVMQ) | 0.5 – 10 mm | 40 – 70 Shore A | Fuel, oil, and solvent contact |
Fiberglass Reinforced Silicone | 0.8 – 6 mm | 60 – 70 Shore A | Stable size, no stretch, flange use |
Conductive Silicone | 0.5 – 6 mm | 50 – 75 Shore A | EMI shielding, anti-static uses |
More options on request: FDA food grade, medical grade, high temperature (up to 300°C), flame retardant, metal detectable, and adhesive backing (acrylic or silicone PSA).
Standard colors include translucent, red, white, black, gray, and blue. Custom colors are available — just send us a Pantone number or a sample.
