Industrial Grade Silicone Gasket
Manufacturer & Custom Solutions

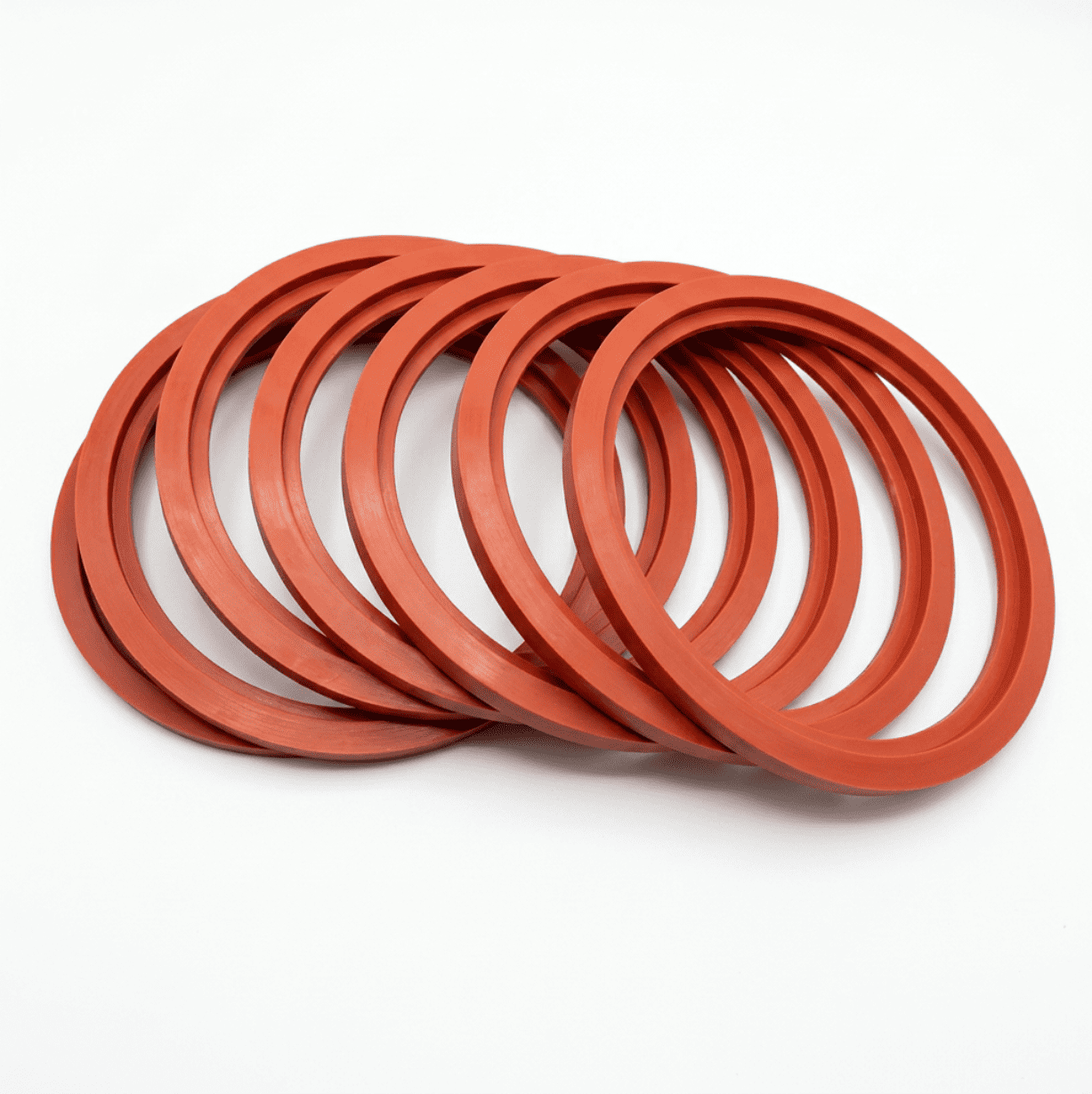

Industrial Grade Silicone Gasket
ZSR Silicone supplies industrial grade silicone gaskets for general sealing duties. They resist ozone, UV and aging, and work from -60°C to 230°C. Low MOQ and fast lead times make us a practical choice for maintenance and OEM programs.
FDA 21 CFR 177.2600
Rubber Articles Intended for Repeated Use
LFGB 30&31
EU Food Contact Materials
USP Class VI / ISO 10993
Biocompatibility of Medical Devices
RoHS / REACH
Environmental Compliance
UL 94
Flammability of Plastic Materials
Built to Your Exact Spec
Custom Silicone Gaskets Options
| Image | Product | Type | Short Info | Action |
|---|---|---|---|---|
 | DIN 32676 Silicone Gasket | Standard & Size | DIN 32676 tri-clamp silicone gaskets, FDA food grade, full size range in stock at ZSR factory. | View Details |
 | AS568 Standard Silicone Gaskets | Standard & Size | AS568 standard-size silicone gaskets for groove-based sealing applications. | View Details |
 | DIN 3869 Silicone Sealing Ring | Standard & Size | DIN 3869 profile sealing rings in silicone for hydraulic ports, working from -60°C to +200°C. | View Details |
 | EN 1514-1 Silicone Gasket | Standard & Size | EN 1514-1 silicone flat gaskets for PN flanges, IBC and FF types, standard and custom sizes. | View Details |
 | Custom Die Cut Silicone Gaskets | Standard & Size | Flat silicone gaskets cut to any shape from sheet stock. Precision cutting for exact fits. | View Details |
 | ISO 7483 Silicone Gasket | Standard & Size | Silicone gaskets to ISO 7483 for ISO 7005 flanges, made for international projects and tenders. | View Details |
 | Custom Molded Silicone Gaskets | Standard & Size | Three-dimensional silicone gaskets made by compression or injection molding. For complex sealing shapes. | View Details |
 | ISO 1127 Silicone Gasket | Standard & Size | Sanitary silicone gaskets matched to ISO 1127 stainless steel tube sizes for food and pharma lines. | View Details |
 | Standard Flange Silicone Gaskets | Standard & Size | Silicone gaskets cut to fit pipe flanges. Matches ANSI, DIN and JIS bolt patterns. | View Details |
 | B16.21 Silicone Gasket | Standard & Size | ZSR makes silicone gaskets to ASME B16.21, ring type and full face type, for Class 150 to 2500 pipe flanges. | View Details |
 | ISO 2852 Silicone Gasket | Standard & Size | ISO 2852 silicone clamp gaskets for food industry couplings, FDA grade, factory direct from ZSR. | View Details |
 | Tri-Clamp / Sanitary Silicone Gaskets | Standard & Size | Hygienic silicone gaskets for food and pharmaceutical pipe connections. CIP and SIP compatible. | View Details |
 | B16.5 Silicone Gasket | Standard & Size | Silicone gaskets from ZSR sized to fit ASME B16.5 flanges, NPS 1/2 to 24 inch, Class 150 to 2500. | View Details |
 | Metric Size Silicone Gaskets | Standard & Size | Metric dimension silicone gaskets for international equipment standards. | View Details |
 | DIN 7603 Silicone Sealing Ring | Standard & Size | Flat silicone sealing rings made to DIN 7603 for screw plugs, banjo bolts and threaded fittings. | View Details |
 | DIN 2690 Silicone Gasket | Standard & Size | Silicone flat gaskets to DIN 2690 / EN 1514-1 dimensions for PN6 to PN40 flanges, food grade available. | View Details |
 | DIN 2691 Silicone Gasket | Standard & Size | Silicone gaskets made to DIN 2691 for tongue and groove flanges PN10 to PN160, ideal for plant repair. | View Details |
 | DIN 11851 Silicone Gasket | Standard & Size | Food grade silicone gaskets for DIN 11851 sanitary unions, DN10 to DN150, FDA material. | View Details |
 | FDA Food Grade Silicone Gasket | Grade | Food-safe silicone gaskets for processing equipment. FDA-compliant and taste-neutral. | View Details |
 | Medical Grade Silicone Gasket | Grade | Biocompatible silicone gaskets for medical devices. Sterilizable with full documentation. | View Details |
 | Industrial Grade Silicone Gasket | Grade | General-purpose silicone gaskets for industrial sealing. Reliable, durable and cost-effective. | View Details |
 | High Temperature / Heat Resistant Silicone Gaskets | Special Function | Heat-resistant silicone gaskets rated for continuous use above 200°C. For ovens and furnaces. | View Details |
 | Flame Retardant Silicone Gaskets | Special Function | Self-extinguishing silicone gaskets meeting UL 94 V-0. For fire-safety applications. | View Details |
 | Solid Silicone Rubber Gaskets | Materials | Solid silicone rubber gaskets with excellent compression set resistance and long service life. | View Details |
 | Fluorosilicone (FVMQ) Gaskets | Materials | Fuel and solvent-resistant silicone gaskets for chemical processing and automotive applications. | View Details |
 | Transparent / Clear Silicone Gaskets | Color | Clear silicone gaskets for visible sealing and light-transmitting applications. | View Details |
 | Black / White Silicone Gaskets | Color | Standard black and white silicone gaskets. Fastest delivery from stock. | View Details |
Grade Comparison: Industrial vs Food vs Medical
All three grades are real silicone rubber — the same base material family. What changes is the testing, the production control, and the paperwork behind them:
Factor | Industrial Grade | Food Grade | Medical Grade |
|---|---|---|---|
Key Compliance | General industrial standards | FDA 21 CFR 177.2600 / LFGB | USP Class VI + ISO 10993 |
Testing Focus | Size, hardness, physical performance | Migration & extraction tests (no harmful substances move into food) | Full biocompatibility tests (cytotoxicity, sensitization, irritation) |
Production Environment | Standard workshop | Clean, contamination-controlled workshop | ISO 13485 quality system, cleanroom production |
Documentation | Batch record, basic CoA | Declaration of Compliance + CoA | Full lot traceability, CoA, test reports on request |
Cure System | Peroxide (standard) | Peroxide or platinum | Platinum |
Relative Price | \$ (lowest) | \$\$ | \$\$\$ (highest) |
How to choose:
If the gasket never touches food or the human body, industrial grade is the smart buy — you get the same sealing performance without paying for tests you do not need. If it touches food, you need food grade. If it touches the body, medicine, or body fluids, only medical grade is acceptable.
Common Applications
Industrial grade silicone gaskets are the everyday workhorse of sealing. Typical uses include:
Machinery covers and access panels
dust, splash, and vibration sealing on machine housings
Electronics housings and electrical enclosures
junction boxes, control panels, LED lighting, outdoor communication cabinets
HVAC equipment
duct flanges, air handling units, filter covers, dampers, and access doors
Automotive non-fuel systems
lighting assemblies, HVAC units, battery enclosures, and cabin equipment (for fuel and oil contact, use fluorosilicone instead)
Industrial valves and pumps
general service with air, water, and mild chemicals
General equipment assembly
anywhere a flexible, heat-stable, weather-proof seal is needed at a fair cost
Not sure if your application can use industrial grade? Tell us what the gasket touches — air, water, food, oil, or something else — and we will confirm the right grade for free.
What Is Industrial Grade Silicone?
Industrial grade silicone is the general-purpose member of the silicone rubber family. It is made for everyday engineering and manufacturing jobs — sealing, insulating, cushioning, and protecting — where the part does not touch food or the human body. It shares the same silicon-oxygen polymer backbone that gives all silicones their famous stability, but its formula is optimized for mechanical performance and cost efficiency rather than for regulatory certification. In simple terms: it is the practical, no-nonsense silicone that industry runs on.
Key Properties of Industrial Grade Silicone
