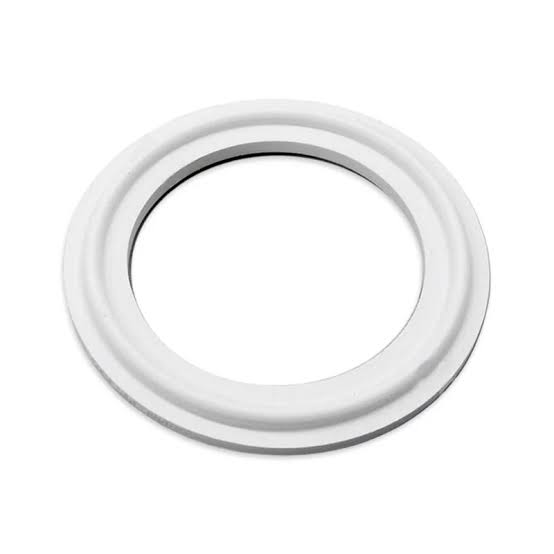

DIN 32676 Silicone Gasket
Manufacturer & Custom Solutions
Sanitary Clamp Pipe Connections (Tri-Clamp)
ZSR is a factory for tri-clamp gaskets made to DIN 32676, used in food, beverage, pharmacy and cosmetic production lines. Clamp gaskets are usually made from EPDM or PTFE. Silicone is the most popular choice for food and pharma lines because it is FDA grade, soft for fast hand installation, and resistant to steam and hot water cleaning. We stock the full size range and can deliver fast to keep your line running. Different colors and materials like EPDM and PTFE are also available. Ask us for a quote today.
FDA 21 CFR 177.2600
Rubber Articles Intended for Repeated Use
LFGB 30&31
EU Food Contact Materials
USP Class VI / ISO 10993
Biocompatibility of Medical Devices
RoHS / REACH
Environmental Compliance
UL 94
Flammability of Plastic Materials
Built to Your Exact Spec
Custom Silicone Gaskets Options
| Image | Product | Type | Short Info | Action |
|---|---|---|---|---|
 | DIN 32676 Silicone Gasket | Standard & Size | DIN 32676 tri-clamp silicone gaskets, FDA food grade, full size range in stock at ZSR factory. | View Details |
 | AS568 Standard Silicone Gaskets | Standard & Size | AS568 standard-size silicone gaskets for groove-based sealing applications. | View Details |
 | DIN 3869 Silicone Sealing Ring | Standard & Size | DIN 3869 profile sealing rings in silicone for hydraulic ports, working from -60°C to +200°C. | View Details |
 | EN 1514-1 Silicone Gasket | Standard & Size | EN 1514-1 silicone flat gaskets for PN flanges, IBC and FF types, standard and custom sizes. | View Details |
 | Custom Die Cut Silicone Gaskets | Standard & Size | Flat silicone gaskets cut to any shape from sheet stock. Precision cutting for exact fits. | View Details |
 | ISO 7483 Silicone Gasket | Standard & Size | Silicone gaskets to ISO 7483 for ISO 7005 flanges, made for international projects and tenders. | View Details |
 | Custom Molded Silicone Gaskets | Standard & Size | Three-dimensional silicone gaskets made by compression or injection molding. For complex sealing shapes. | View Details |
 | ISO 1127 Silicone Gasket | Standard & Size | Sanitary silicone gaskets matched to ISO 1127 stainless steel tube sizes for food and pharma lines. | View Details |
 | Standard Flange Silicone Gaskets | Standard & Size | Silicone gaskets cut to fit pipe flanges. Matches ANSI, DIN and JIS bolt patterns. | View Details |
 | B16.21 Silicone Gasket | Standard & Size | ZSR makes silicone gaskets to ASME B16.21, ring type and full face type, for Class 150 to 2500 pipe flanges. | View Details |
 | ISO 2852 Silicone Gasket | Standard & Size | ISO 2852 silicone clamp gaskets for food industry couplings, FDA grade, factory direct from ZSR. | View Details |
 | Tri-Clamp / Sanitary Silicone Gaskets | Standard & Size | Hygienic silicone gaskets for food and pharmaceutical pipe connections. CIP and SIP compatible. | View Details |
 | B16.5 Silicone Gasket | Standard & Size | Silicone gaskets from ZSR sized to fit ASME B16.5 flanges, NPS 1/2 to 24 inch, Class 150 to 2500. | View Details |
 | Metric Size Silicone Gaskets | Standard & Size | Metric dimension silicone gaskets for international equipment standards. | View Details |
 | DIN 7603 Silicone Sealing Ring | Standard & Size | Flat silicone sealing rings made to DIN 7603 for screw plugs, banjo bolts and threaded fittings. | View Details |
 | DIN 2690 Silicone Gasket | Standard & Size | Silicone flat gaskets to DIN 2690 / EN 1514-1 dimensions for PN6 to PN40 flanges, food grade available. | View Details |
 | DIN 2691 Silicone Gasket | Standard & Size | Silicone gaskets made to DIN 2691 for tongue and groove flanges PN10 to PN160, ideal for plant repair. | View Details |
 | DIN 11851 Silicone Gasket | Standard & Size | Food grade silicone gaskets for DIN 11851 sanitary unions, DN10 to DN150, FDA material. | View Details |
 | FDA Food Grade Silicone Gasket | Grade | Food-safe silicone gaskets for processing equipment. FDA-compliant and taste-neutral. | View Details |
 | Medical Grade Silicone Gasket | Grade | Biocompatible silicone gaskets for medical devices. Sterilizable with full documentation. | View Details |
 | Industrial Grade Silicone Gasket | Grade | General-purpose silicone gaskets for industrial sealing. Reliable, durable and cost-effective. | View Details |
 | High Temperature / Heat Resistant Silicone Gaskets | Special Function | Heat-resistant silicone gaskets rated for continuous use above 200°C. For ovens and furnaces. | View Details |
 | Flame Retardant Silicone Gaskets | Special Function | Self-extinguishing silicone gaskets meeting UL 94 V-0. For fire-safety applications. | View Details |
 | Solid Silicone Rubber Gaskets | Materials | Solid silicone rubber gaskets with excellent compression set resistance and long service life. | View Details |
 | Fluorosilicone (FVMQ) Gaskets | Materials | Fuel and solvent-resistant silicone gaskets for chemical processing and automotive applications. | View Details |
 | Transparent / Clear Silicone Gaskets | Color | Clear silicone gaskets for visible sealing and light-transmitting applications. | View Details |
 | Black / White Silicone Gaskets | Color | Standard black and white silicone gaskets. Fastest delivery from stock. | View Details |
What DIN 32676 Covers
DIN 32676 is the European standard for sanitary clamp pipe connections — the same system the world knows as Tri-Clamp or ferrule clamp fittings. If your plant uses clamp-together stainless fittings, there is a good chance they follow this standard.
The connection has just three parts: two ferrules (welded to the pipe ends), a clamp, and a gasket. The gasket sits between the two flat ferrule faces; the clamp closes around both ferrules and squeezes the gasket into a tight, hygienic seal. No threads in the product zone, no bolts, no crevices — and the whole joint opens in seconds for cleaning. That is why this is the most common sanitary connection in modern food and pharmaceutical plants.
One detail worth knowing
DIN 32676 comes in three series, matching three tube systems:
The system is also closely related to ISO 2852 — dimensions are coordinated, and we can supply to either standard. Not sure which series your line uses? Measure the tube OD or send us a sample gasket, and we will identify it.
DIN 32676 Gasket Sizes
The gasket size follows the ferrule it seals. One rule above all: the gasket's outer diameter must match the ferrule face diameter exactly. Overhang leaves a flap that traps product; underhang leaves a crevice. Both fail hygiene inspection.
Standard gasket dimensions — Series A (DIN 11850 tube), mm:
DN Size | Gasket OD (= Ferrule Face) | Gasket ID |
|---|---|---|
DN10 | 34 | 10.2 |
DN15 | 34 | 16.2 |
DN20 | 34 | 20.2 |
DN25 | 50.5 | 26.2 |
DN32 | 50.5 | 32.2 |
DN40 | 50.5 | 38.2 |
DN50 | 64 | 50.2 |
DN65 | 91 | 66.2 |
DN80 | 106 | 81.2 |
DN100 | 119 | 100.2 |
DN125 | 155 | 125.2 |
DN150 | 183 | 150.2 |
DN200 | 233.5 | 200.2 |
Note how several DN sizes share one ferrule OD — DN10/15/20 all use the 34 mm clamp connection, and DN25/32/40 share the 50.5 mm connection. The sealing section thickness is typically about 3.2 mm (1/8"), giving the right compression when the clamp is tightened by hand.
Precision you can measure
ZSR keeps precision molds and cutting dies for all standard DIN 32676 sizes, Series A, B, and C. Every gasket ships within tight ID/OD tolerances, so it drops into the ferrule groove and sits flush — first time, every time.
Material Options for Sanitary Clamps
Material | Compliance | Best For |
|---|---|---|
Platinum-Cured FDA Silicone (our standard) | FDA 21 CFR 177.2600 | Food, dairy, beverage, brewery lines — odorless, tasteless, soft for fast hand installation |
USP Class VI Silicone | FDA + USP Class VI + ISO 10993 | Pharmaceutical, biotech, and high-purity water systems |
Metal Detectable Silicone | FDA 21 CFR 177.2600, detector-visible | Food plants with HACCP metal detection programs |
High-Temp Silicone | FDA, heat-stabilized | Lines with frequent SIP steam cycles up to 123°C and beyond |
Our recommendation
Platinum curing for every DIN 32676 gasket. Platinum-cured silicone leaves no peroxide by-products in the rubber — no odor, no extractables, nothing that can migrate into your product. It also survives repeated CIP washdowns and SIP steam cycles without hardening, so gaskets last longer between change-outs.
Need something else? We also make EPDM (high-acid and caustic service), FKM (oils and fats at high temperature), and PTFE and envelope gaskets (aggressive chemicals) in all DIN 32676 sizes. Clear and colored silicone versions are available for line coding. Tell us your product, your cleaning regime, and your temperature — we will match the material.
What Is DIN 32676?
DIN 32676 is the German standard for sanitary clamp pipe couplings — the quick-release fittings that connect stainless steel tubes in food, beverage, and pharmaceutical plants. Published by DIN, the German Institute for Standardization, it defines the complete connection: the ferrule dimensions, the clamp sizes, and the gaskets that seal between them, across three tube series (A, B, and C) and sizes from DN4 up to DN300. Together with its international partner ISO 2852, it is the dimensional foundation of the Tri-Clamp world — the reason a clamp fitting from one maker seals perfectly against a ferrule from another.
Key Points of the Standard
At ZSR Silicone Parts, DIN 32676 gaskets are a stock program, not a special order: the full size range, in food grade silicone and five other materials, ready to ship. Tell us your DN size, your series, and your medium — we will quote within 24 hours.
