EN 1514-1 Silicone Gasket
Manufacturer & Custom Solutions
Flanges and their Joints — Gaskets for PN-Designated Flanges — Part 1: Non-Metallic Flat Gaskets
ZSR manufactures silicone flat gaskets according to EN 1514-1, the current European standard for non-metallic gaskets on PN flanges. Gaskets for this standard are usually made from compressed fiber sheet, PTFE or rubber. Silicone is a better choice when you need FDA food grade material, a wide temperature range from -60°C to +200°C, or a soft gasket for low bolt load flanges such as plastic or glass-lined flanges. Our gaskets fit EN 1092-1 flanges from PN6 to PN40, in IBC type without bolt holes and FF type with bolt holes. Send your enquiry and get a quote within 24 hours.
FDA 21 CFR 177.2600
Rubber Articles Intended for Repeated Use
LFGB 30&31
EU Food Contact Materials
USP Class VI / ISO 10993
Biocompatibility of Medical Devices
RoHS / REACH
Environmental Compliance
UL 94
Flammability of Plastic Materials
Built to Your Exact Spec
Custom Silicone Gaskets Options
| Image | Product | Type | Short Info | Action |
|---|---|---|---|---|
 | DIN 32676 Silicone Gasket | Standard & Size | DIN 32676 tri-clamp silicone gaskets, FDA food grade, full size range in stock at ZSR factory. | View Details |
 | AS568 Standard Silicone Gaskets | Standard & Size | AS568 standard-size silicone gaskets for groove-based sealing applications. | View Details |
 | DIN 3869 Silicone Sealing Ring | Standard & Size | DIN 3869 profile sealing rings in silicone for hydraulic ports, working from -60°C to +200°C. | View Details |
 | EN 1514-1 Silicone Gasket | Standard & Size | EN 1514-1 silicone flat gaskets for PN flanges, IBC and FF types, standard and custom sizes. | View Details |
 | Custom Die Cut Silicone Gaskets | Standard & Size | Flat silicone gaskets cut to any shape from sheet stock. Precision cutting for exact fits. | View Details |
 | ISO 7483 Silicone Gasket | Standard & Size | Silicone gaskets to ISO 7483 for ISO 7005 flanges, made for international projects and tenders. | View Details |
 | Custom Molded Silicone Gaskets | Standard & Size | Three-dimensional silicone gaskets made by compression or injection molding. For complex sealing shapes. | View Details |
 | ISO 1127 Silicone Gasket | Standard & Size | Sanitary silicone gaskets matched to ISO 1127 stainless steel tube sizes for food and pharma lines. | View Details |
 | Standard Flange Silicone Gaskets | Standard & Size | Silicone gaskets cut to fit pipe flanges. Matches ANSI, DIN and JIS bolt patterns. | View Details |
 | B16.21 Silicone Gasket | Standard & Size | ZSR makes silicone gaskets to ASME B16.21, ring type and full face type, for Class 150 to 2500 pipe flanges. | View Details |
 | ISO 2852 Silicone Gasket | Standard & Size | ISO 2852 silicone clamp gaskets for food industry couplings, FDA grade, factory direct from ZSR. | View Details |
 | Tri-Clamp / Sanitary Silicone Gaskets | Standard & Size | Hygienic silicone gaskets for food and pharmaceutical pipe connections. CIP and SIP compatible. | View Details |
 | B16.5 Silicone Gasket | Standard & Size | Silicone gaskets from ZSR sized to fit ASME B16.5 flanges, NPS 1/2 to 24 inch, Class 150 to 2500. | View Details |
 | Metric Size Silicone Gaskets | Standard & Size | Metric dimension silicone gaskets for international equipment standards. | View Details |
 | DIN 7603 Silicone Sealing Ring | Standard & Size | Flat silicone sealing rings made to DIN 7603 for screw plugs, banjo bolts and threaded fittings. | View Details |
 | DIN 2690 Silicone Gasket | Standard & Size | Silicone flat gaskets to DIN 2690 / EN 1514-1 dimensions for PN6 to PN40 flanges, food grade available. | View Details |
 | DIN 2691 Silicone Gasket | Standard & Size | Silicone gaskets made to DIN 2691 for tongue and groove flanges PN10 to PN160, ideal for plant repair. | View Details |
 | DIN 11851 Silicone Gasket | Standard & Size | Food grade silicone gaskets for DIN 11851 sanitary unions, DN10 to DN150, FDA material. | View Details |
 | FDA Food Grade Silicone Gasket | Grade | Food-safe silicone gaskets for processing equipment. FDA-compliant and taste-neutral. | View Details |
 | Medical Grade Silicone Gasket | Grade | Biocompatible silicone gaskets for medical devices. Sterilizable with full documentation. | View Details |
 | Industrial Grade Silicone Gasket | Grade | General-purpose silicone gaskets for industrial sealing. Reliable, durable and cost-effective. | View Details |
 | High Temperature / Heat Resistant Silicone Gaskets | Special Function | Heat-resistant silicone gaskets rated for continuous use above 200°C. For ovens and furnaces. | View Details |
 | Flame Retardant Silicone Gaskets | Special Function | Self-extinguishing silicone gaskets meeting UL 94 V-0. For fire-safety applications. | View Details |
 | Solid Silicone Rubber Gaskets | Materials | Solid silicone rubber gaskets with excellent compression set resistance and long service life. | View Details |
 | Fluorosilicone (FVMQ) Gaskets | Materials | Fuel and solvent-resistant silicone gaskets for chemical processing and automotive applications. | View Details |
 | Transparent / Clear Silicone Gaskets | Color | Clear silicone gaskets for visible sealing and light-transmitting applications. | View Details |
 | Black / White Silicone Gaskets | Color | Standard black and white silicone gaskets. Fastest delivery from stock. | View Details |
What EN 1514-1 Covers
EN 1514-1 is the current European standard for nonmetallic flat gaskets used with PN-designated flanges, covering ratings from PN2.5 to PN100. Its full title says it all: Flanges and their Joints — Gaskets for PN-Designated Flanges — Part 1: Non-Metallic Flat Gaskets, with or without Inserts.
Two things every European buyer should know:

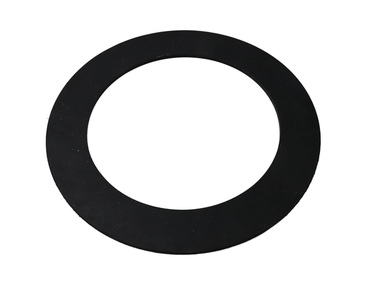

The gaskets covered here are flat, soft-face gaskets in two forms: IBC (inside bolt circle) for raised face flanges, and FF (full face) for flat face flanges. At ZSR Silicone Parts, we manufacture EN 1514-1 silicone gaskets in full compliance with the dimensional tables of the standard — ID, OD, bolt pattern, and tolerances exactly as published, for EN 1092-1 flanges of every common DN and PN.
EN 1514-1 Dimensions and Tolerances
EN 1514-1 fixes the gasket's inner diameter by DN and its outer diameter by DN and PN rating. Standard thicknesses run from 0.5 mm to 3 mm, with 1.5, 2, and 3 mm covering most applications.
Common IBC gasket dimensions (mm):
DN | Gasket ID | OD for PN10 / PN16 | OD for PN25 / PN40 | Thickness |
|---|---|---|---|---|
DN15 | 22 | 50 | 51 | 1.5 – 3 |
DN25 | 35 | 70 | 71 | 1.5 – 3 |
DN40 | 49 | 92 | 92 | 1.5 – 3 |
DN50 | 61 | 107 | 107 | 1.5 – 3 |
DN65 | 77 | 127 | 127 | 1.5 – 3 |
DN80 | 90 | 142 | 142 | 1.5 – 3 |
DN100 | 115 | 162 | 168 | 1.5 – 3 |
DN150 | 169 | 218 | 224 | 2 – 3 |
DN200 | 220 | 273 | 284 – 290 | 2 – 3 |
DN300 | 325 | 384 | 400 – 417 | 2 – 3 |
FF (full face) gaskets follow the flange's full outside diameter and bolt pattern per EN 1092-1 — we cut them with bolt holes to match your flange exactly.
A note on "centering"
Metal centering rings belong to spiral wound gaskets (EN 1514-2), not to this standard. For silicone flat gaskets, dimensional stability under bolt load comes from the material itself — which is why we offer fiberglass reinforced silicone: the fabric insert keeps the gasket dimensionally stable on large DN sizes and high bolt loads, without any metal part. For food lines, this also keeps the gasket metal-free.
EN 1514-1 vs DIN 2690 vs ISO 7483
Three standard numbers, one gasket family. Here is how they relate:
Factor | EN 1514-1 | DIN 2690 | ISO 7483 |
|---|---|---|---|
Status | Current European standard | Withdrawn German standard, still widely referenced | International (ISO) standard |
Flange System | EN 1092-1 PN flanges | Old DIN 2501 PN flanges | ISO 7005 flanges |
Region | All EU projects | Legacy German/European plants and drawings | Projects outside Europe, international OEM equipment |
Dimensions | The harmonized reference | Nearly identical for most DN sizes (this is where EN 1514-1 came from) | Aligned — ISO 7005-1 flanges are technically equivalent to EN 1092-1 |
Buyer Type | New projects, specifications, CE-marked equipment | Maintenance, spare parts, old documentation | Export equipment, international EPC projects |
The practical takeaway
The three standards describe essentially the same gasket geometry — EN 1514-1 harmonized the German system, and ISO aligned with it. A silicone gasket we cut to one will, in most cases, fit flanges specified to the others.
Need something else? We also make EPDM (high-acid and caustic service), FKM (oils and fats at high temperature), and PTFE and envelope gaskets (aggressive chemicals) in all DIN 32676 sizes. Clear and colored silicone versions are available for line coding. Tell us your product, your cleaning regime, and your temperature — we will match the material.
What Is EN 1514-1?
EN 1514-1 is the harmonized European standard for nonmetallic flat gaskets on PN flanges. Published by CEN, the European Committee for Standardization, it gathers the gasket dimension systems of the old national standards into one European rulebook: for every DN size and PN rating, it fixes the gasket's dimensions, tolerances, and marking, so that a compliant gasket seals any compliant PN flange anywhere in Europe. It is Part 1 of the EN 1514 series — the part dedicated to the soft, flat gaskets used in water, food, chemical, and general industrial pipelines every day.
Key Points of the Standard
At ZSR Silicone Parts, EN 1514-1 is a core production standard: dimensional tables on file, cutting templates for common DN sizes, and full compliance documentation available with every order. Tell us your DN, PN, and medium — we will quote within 24 hours.
